1984 - Page 5


Output For 1983/84

  • North Derbyshire Area 6,290,325 tonnes, 11,129 men, 2.13 tonnes OMS
  • North Nottinghamshire Area 11,805,898 tonnes, 17,051 men, 3.34 tonnes OMS
  • South Nottinghamshire pits 7,104,245 tonnes, 13,652 men, 2.55 tonnes OMS.

Water From Summit Running Into Newstead

Water from the closed Kirkby Summit colliery (1968) was now entering the High Main north side workings at Newstead.

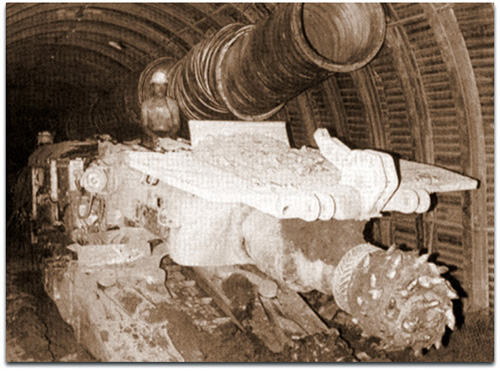

Titan Road Header

 A large Titan E134 road-heading machine was installed in the third drift at Ollerton, dipping at 1in4.   A smaller Titan E169 machine was installed in a scour later. Both were to prove good machines.


Cotgrave

The Blackshale seam was accessed at Cotgrave (South Nottinghamshire) and at Sherwood (North Nottinghamshire) and Shirebrook (North Derbyshire).


Single Entry Mining Pioneered At Pye Hill

Single entry using a modified Dosco in-seam miner in 5 feet (1.5m) high and a face 16½ yards (15m) long with 11 powered supports and a 3 man team was pioneered at Pye Hill (South Nottinghamshire).  K49s panel retreated 200m in 59 shifts producing 5,400 tonnes at an OMS of +30 tonnes.


Mansfield Single Entry Faces

The thick combined Deep Hard/Piper seam was developed at Mansfield (North Nottinghamshire).  43¾ yards (40m) single entry faces at 7’ 6” (2.3m) high and a run of 655 yards (600m) were started: 202s, 204s and 206s.  However the successful extraction rates proved too great and the development of the gates could not keep up.


Retreat Face At Sherwood

In the first 6 months 133s panel at Sherwood (North Nottinghamshire) with a face line of 55m retreated 840m with a weekly best output of 12,500 tonnes. I visited this panel with the Ollerton Undermanager Alan V Goodwin (8140) to observe the operations and support systems in readiness for the introduction of a retreat face at Ollerton in the near future. We met the Undermanager Brian C Wright (9913) on the panel who fully explained the system. He would become Group Director eventually.


Thoresby

The High Hazles seam at Thoresby (North Nottinghamshire) was abandoned as production was concentrated in the thick Parkgate seam and the last of the Top Hard reserves.


Babbington Heavily Picketed

Month two of the strike and more than 2,000 pickets swarmed in from the M1 Motorway and surrounded the pit gates at Babbington, (South Nottinghamshire) however the men going to work were allowed in


Parliament

An emergency debate was held in the House of Commons, but the Government made it clear that it would not interfere with the running of the Coal Board by Ian McGregor.

Leon Brittan the Home Secretary (Con) said that the Government was prepared to pay 90% of the costs incurred by the local authorities in policing the dispute.


Arthur Scargill Visited Nottinghamshire

Arthur Scargill visited Nottinghamshire on a number of occasions to address rallies and lead marches aimed at persuading the local miners to join the strike, but to no avail. Only the few NUM members who had come out in the first place were on his side. A few of those relented and went back to work, both North  Nottinghamshire and Derbyshire because after 2 months out without pay, it was beginning to tell. Of course at the time I didn’t realise, same as a good many more, that one was paid £4 a day to stand on an Official Picket Line!

Arthur Scargill attended the Mansfield May Day Rally which ended with 57 arrests for rioting.


Ian McGregor Made His First Visit To Nottinghamshire

Ian McGregor NCB Chairman made his first visit to Nottinghamshire since the dispute started.  He had a ‘thank you’ message for the workers and an ‘uncompromising message’ for the strikers – there would be no talks until the NUM came up with some constructive suggestions.


NUM Parade in Mansfield

20,000 or more paraded the streets of Mansfield led by Arthur Scargill and Tony Benn MP. The dispute had been going on for 11 weeks before Arthur Scargill and Ian McGregor met for the first time round the negotiating table, but the talks broke up after one hour. Three miners asked the High Court to declare illegal the Nottinghamshire Area decision to make the strike official.


NCB And NUM Talks Break Down

On 24th May the first meeting in London between the NCB and NUM, There was an offer to extend the deadline for further pit closures. The talks broke down after one hour.


Specifications For Faces

In the North Nottinghamshire Area for the period May 1984 the specifications for all faces for each Colliery in the Area is shown: Panzer chain size mainly 22mm, some 19mm, and 18mm at Creswell.  90% of stage loader chains were 19mm. This gives some idea of the amount of equipment on or at a coal face.

Bevercotes:

  • Top Hard 1s Main machine was AS DERDS with extended FIDD arms, both gate end stables were eliminated by the main machine, 2 x MS Gemini 150hp single speed AFC drives, 222mm pans, the rippings:
    Main gate half-head, blown down, loaded by Eimco 625, and hand loaded, and at the Tail gate:
    In-line M and C Boom ripper and hand loaded also, 2 x 120hp stage loader, Face Chocks Gullick 4/250 tonnes
  • Top Hard 6s BJD DERDS, both gate ends eliminated by main machine, 2 x MS Gemini Winster vertical 150hp 2 speed motors, and both gate rips In-line Webster 2000 Cams, Dowty 4/325 tonnes face chocks
  • Parkgate 94s AS DERDS with AMBROAS arms, both gate ends eliminated by main machine, 2 x Winster 222 vertical 150hp AFC motors, Main gate rip In-line UTR and hand and at the Tail gate In-line M and C Boom ripper, Dowty 6/240 tonnes face chocks
  • Parkgate 96s AS DERDS with extended FIDD arms, both gate ends eliminated by main machine, 2 x MS Gemini 150 hp single speed AFC drives, 22mm chain, Main gate half head, blown with Eimco 625 loader and Hand also, Tail gate  In-line M and C Boom ripper and hand, Dowty 5/200 tonnes face chocks
  • Parkgate 97s AS DERDS, stables eliminated by main machine, 2 x MS North Nottinghamshire spec 150hp single speed AFC motors, 19mm chain, Retreat panel, D 6/240 chocks. 5 panels working, 3 with twin beam stage loaders.

Similar information for the other collieries:

Bilsthorpe:

  • Parkgate 15s AS DERDS with AMBROAS arms, Gullick 4/280 tonnes chocks, In-line rips, Dosco side discharge machines with cams
  •  Low Main 78s, AS DERDS ext FIDD arms, Gk 5/200 tonnes chocks, Dosco side discharge and UTR/hand at tail gate
  •  Low Main 106s, AS DERDS ext FIDD arms, Gk 5/200 chocks, Dosco side discharge and cams
  •  Low Main 111s, BJD DERDS, Gk 5/200 chocks, Dosco side discharge and UTR/hand at tail gate.  4 panels, 2 stage loaders with crushers.

Blidworth:

  • Abdy/Brinsley 8s, AS DERDS with AMBOAS arms, Dowty 4/325 chocks, Conventional ripping lips, Dosco side discharge / stower, at both gates
  •  High Hazles 104s, DECMT and 2 x BJD SERDS at stables, Dowty 5/150 chocks, Conventional rips, Webster 2000 stower, (Universal Track Ripper) UTR/ slusher
  •  High Hazles 106s DECMT, 2 x SERDS, Dowty 5/150 chocks, Conventional rips with Webster 2000 stower, and UTR/slusher
  •  HH 116s DECMT plus 2 x BJD SERDS, Dowty 5/150 chocks, In-line Dosco side discharge/hand, and Conventional rip with UTR/slusher.  4 panels, 2 with twin beam stage loaders.

Clipstone:

  • Low Main 66s Eickhoff Buttock Shearer with 1600 arms, Gullick 5/150 chocks, Webster 2000/hand and UTR/slusher
  •  Deep Soft 101s AS Buttock shearer, Gullick 5/150 chocks, Advanced head, Dosco IIA, stower and UTR/slusher
  •  Deep Soft 104s, AS Buttock shearer, Gullick 5/150 chocks, Adv head, Dosco IIA stower and Dint Webster 2000, stower
  •  DS 109s AS Buttock Shearer, Dowty 6/210 chocks, Adv head, Dosco IIA, stower and Dint Webster 2000/stower
  •  DS 110s, AS Buttock shearer, Gullick 5/150 chocks, Adv head Dosco IIA, stower and Dint Webster 2000, stower. 5 panels.

Creswell:

  • Threequarter 5s, Eickhoff Buttock shearer, Dowty 5/150 chocks, Eimco 612H/hand and RD drill/hand rip
  •  35s, Eickhoff B shearer, Dowty 5/150 chocks, Advanced head, Dosco IIA and M and C Boom Ripper/slusher
  •  36s Eickhoff B shearer, Dowty 5/150 chocks, Adv head Dosco MKIIA/hand and M and C Boom Ripper/slusher
  •  50s Eickhoff B shearer, D 5/150 chocks, Adv head, Dosco IIA/hand and UTR, Markham shield, hydraulic slusher.   4 panels.

Harworth:

  • Deep Soft 1s, BJD DERDS Gullick 4/250 chocks, In line Dosco side discharge/cams at both gates
  •  DS 3s Chainless BJD DERDS G 4/325 chocks, In-line Dosco S-discharge/cams at both gates
  •  Top Hard 86s AS DERDS with AMBROAS arms, Gk 6/240 chocks, Dint Hausherr stower and Dint Dosco D/H stower
  •  Haigh Moor 100s Eickhoff Buttock shearer, Gk 5/200 chocks, Half-head Dosco IIA/hand and In-line UTR/hand.  4 panels, one with beam/monorail and 2 twin beam stage loaders.

Mansfield:

  • Low Main 42s Chainless AS SERDS, same at Tail gate, Gk 5/200 chocks, half-head, Eimco 625/hand and In-line UTR stower
  •  High Hazles 68s DECMT and BJD SERDS, Dowty 5/150 chocks, Adv head, Dosco IIA, stower and In-line Webster 2000/hand
  •  HH 96s DECMT and BJD SERDS, Dowty 5/150 chocks, Adv head Dosco IIA/stower and In-line UTR/hand
  •  Deep Soft 143s Chainless DECMT and chainless BJD SERDS, Dowty 5/150 chocks, Adv head Dosco IIA/stower and In-line UTR/stower
  •  DS 170s DECMT and BJD SERDS, Gk 5/150 chocks, Adv head, Dosco IIA/stower and In-line UTR/stower.
    5 panels.

Ollerton:

  • Parkgate 2s AS DERDS ext FIDD arms, Dowty 4/300 chock shields, half head/Eimco 625/hand, due to rock over seam and In-line Dosco S/D/cams
  •  PG 9s AS DERDS, Retreat face, no rips, but snickets at Ldr Gate, Dowty 6/240 chocks
  •  PG 14s AS DERDS ext Fidd arms, Gk 6/240 chocks, In-line Dosco S/D/hand and In-line Dosco S/D/cams
  •  PG 33s AS DERDS with AMBROAS arms, Dowty 4/325 Chock shields, In-line Dosco S/D/hand and In-line Dosco S/D/cams for gate side pack.  4 panels, 2 with crushers on stage loaders.

Rufford:

  • Yard 6s DECMT and BJD SERDS, Dowty 5/150 chocks, Adv head, Dosco MkIIA/hand and In-line UTR/hand
  • Y 15s Eickhoff B shearer, Dowty 6/240 chocks, Adv head, Dosco MkIIA/stower and In-line UTR/hand
  • Y 24s Eickhoff B shearer, Dowty 5/150 chocks, Adv head, Dosco IIA/ hand and In-line UTR/hand
  • Low Main 45s Chainless AS SERDS and same at Tail gate, Dowty 4/280 chocks, In-line Webster 2000 stower and In-line UTR stower
  • High Hazles 118s DECMT and BJD SERDS, Dowty 5/150 chocks, Adv head, Dosco IIA/hand and In-line UTR/hand
  • HH 155s DECMT and BJD SERDS, Dowty 5/150 chocks, Adv head, Dosco IIA/hand and In-line UTR/hand.
    6 panels.

Sherwood:

  • Deep Hard/ Piper 127s BJD DERDS, Retreat face no rips, Gk 4/370 chocks
  • Yard 203s Eickhoff B shearer, Gk 5/150 chocks, Adv head. Dosco IIA/ stower and In-line, Dosco Side Discharge/stower
  • Blackshale 302s Eickhoff B shearer, Dowty 5/150 rev lemniscate chocks, Adv head Dosco IIA/stower and In-line Webster 2000 stower.
    3 panels.

Silverhill:

  • Blackshale 4s Chainless DECMT and BJD chainless SERDS, Gk 5/150 chocks, Adv head, Dosco IIA/hand and In-line UTR/hand
  • BS 10s Chainless DECMT and chainless BJD SERDS, Gk 5/150 chocks, Adv head, Dosco MkIIA/hand at both gates
  • Low Main 32s AS DERDS and AS SERDS, Dowty 5/150 chocks, In-line Dosco S/D/hand and In-line UTR/hand
  • Piper 211s Chainless DECMT and chainless BJD SERDS, Gk 5/150 chocks, Adv head, Dosco IIA/hand at both gates.  4 panels.

Sutton:

  • Piper 50s DECMT, Dowty 5/150 chocks, Adv head, Dosco S/D/hand at both gates
  • P 52s DECMT and AS SERDS, Dowty 5/150 chocks, Adv head Dosco IIA/hand at both gates
  • Deep Hard 104s Chainless AM 420 Buttock shearer, Dowty 5/150 chocks, Adv head, Dosco IIA/hand at both gates
  • Piper 32s DECMT, Dowty 5/150 chocks, Adv head, Dosco IIA/hand at both gates, monorail.
    4 panels.

Thoresby:

  • Parkgate 100sA, AS DERDS with AMBROAS arms, Dowty 4/300 chock shields, In-line Dosco Side Discharge/cams at both gates
  • PG 109s, AS DERDS with AMBROAS arms, Dowty 4/325 chock shields, In-line Dosco S/D/cams at both gates
  • PG 112s, AS DERDS with AMBROAS arms, Dowty 4/300 chocks, In-line Dosco S/D/cams at both gates
  • Top Hard 201s, AS DERDS with AMBROAS arms, Gk 6/210 chocks, In-line Dosco S/D/cams.
    4 panels, 3 with twin beam stage loaders and 3 with lump breakers, one a twin spiral.

Welbeck:

  • Top Hard 80s, AS DERDS with ext FIDD arms, Dowty 6/240 chocks, Conventional rips at both gates, Eimco 625/hand and Eimco 612H/hand
  • TH 83s, AS DERDS with extra FIDD arms, Gk 6/240 chocks, In-line Dosco S/D/cams at both gates
  • TH 86s, AS DERDS with ext FIDD arms, Dowty 6/240 chocks, Conventional rips, Eimco 625/hand and Eimco 612H/hand
  • TH 90s, AS DERDS with ext FIDD arms, Gk 6/240 chocks, Conventional rips, Eimco 625/hand and Eimco 625/slushier
  • TH 104s Chainless AS DERDS with ext FIDD arms and chainless AS DERDS and lump breaker at Loader gate, Gk 6/370 chocks, In-line Dosco S/D/cams at both gates.
    5 panels, all twin beam stage loaders.

Huge Cost Of Subsidence

Due to the ever-increasing subsidence problem the NCB approached the Government for an extra £128m to settle claims in the Mansfield area. This highlighted a major increasing problem and planning was intensified to keep away from built up areas or other problem areas where possible.  However this led to several planned panels being cancelled, eventually leading to the lives of several collieries being shortened.
